Multi-cylinder cone crusher is a typical crushing equipment for medium and fine crushing hard materials, which is mainly used in the two-stage crushing and three-stage crushing link in metal mining and construction sand processing. Multi-cylinder hydraulic cone crusher because its safety, adjustment, locking are realized by hydraulic devices, so it also has the advantages of convenient adjustment of ore discharge, small overload coefficient through non-crushing objects, easy to take out the non-crushing objects blocked in the crushing chamber. However, compared with a single cylinder, the structure of this crusher is more complex, and the manufacturing hours are higher than that of a single cylinder.
| Model | Cavity | Feeding Opening Size (mm) | Min.Feeding Size (mm) | Capacity (t/h) | Power (kW) | OverallDimension (mm) |
| HP100 | C1(超粗) | 140 | 19 | 75-140 | 90 | 1705×1510×1583 |
| C2(粗) | 100 | 13 | 60-110 | |||
| M(中) | 70 | 9 | 52-100 | |||
| F1(细) | 50 | 9 | 50-95 | |||
| F2(超细) | 20 | 6 | 45-90 | |||
| HP200 | C2(粗) | 185 | 19 | 145-250 | 160 | 2135×1750×1927 |
| M(中) | 125 | 16 | 135-235 | |||
| F1(细) | 95 | 13 | 115-220 | |||
| F2(超细) | 75 | 10 | 90-190 | |||

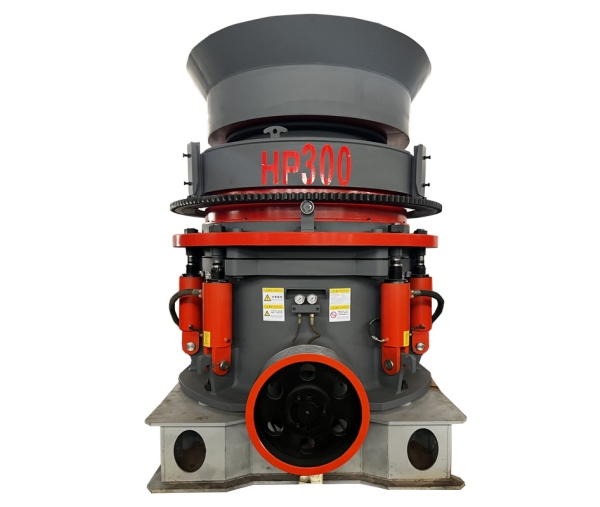

| HP300 | C1(超粗) | 230 | 25 | 220-440 | 250 | 2725×2110×2871 |
| C2(粗) | 210 | 19 | 190-380 | |||
| M(中) | 150 | 16 | 175-320 | |||
| F1(细) | 105 | 13 | 145-280 | |||
| F2(超细) | 80 | 10 | 110-240 | |||

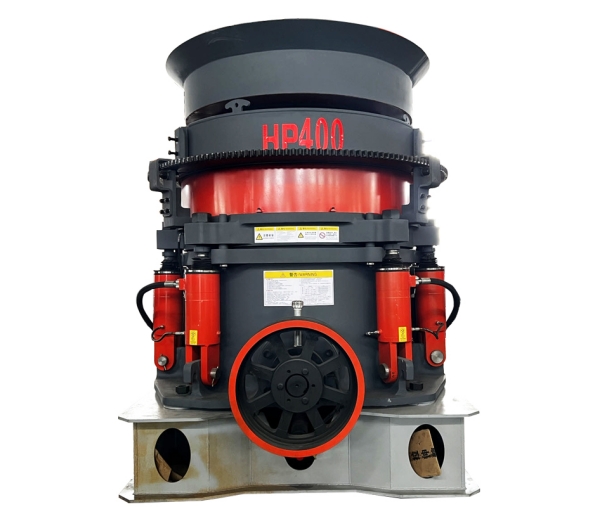

| HP400 | C1(超粗) | 295 | 30 | 300-630 | 315 | 2775×2370×2295 |
| C2(粗) | 251 | 25 | 285-560 | |||
| M(中) | 196 | 20 | 250-490 | |||
| F1(细) | 110 | 13 | 180-345 | |||
| F2(超细) | 90 | 10 | 135-320 | |||

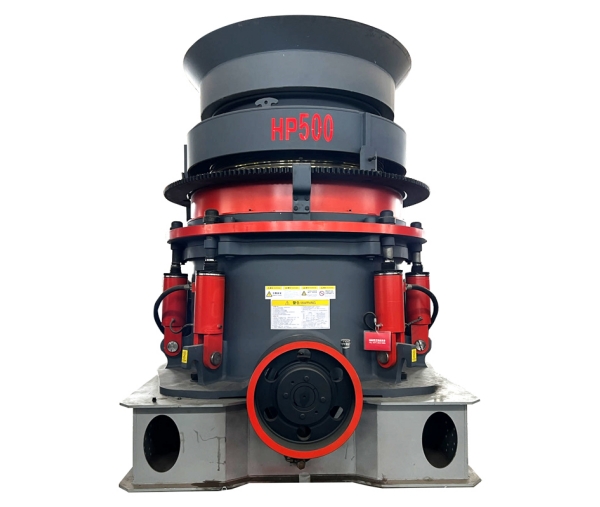

| HP500 | C1(超粗) | 330 | 38 | 425-790 | 400 | 2800×3480×4050 |
| C2(粗) | 290 | 30 | 370-700 | |||
| M(中) | 210 | 22 | 330-605 | |||
| F1(细) | 135 | 16 | 270-535 | |||
| F2(超细) | 95 | 13 | 220-430 | |||
| HP800 | C1(超粗) | 350 | 38 | 570-1200 | 630 | 3970×3345×4235 |
| C2(粗) | 299 | 32 | 520-1050 | |||
| M(中) | 265 | 25 | 475-950 | |||
| F1(细) | 220 | 16 | 370-800 | |||
| F2(超细) | 150 | 13 | 310-600 |
