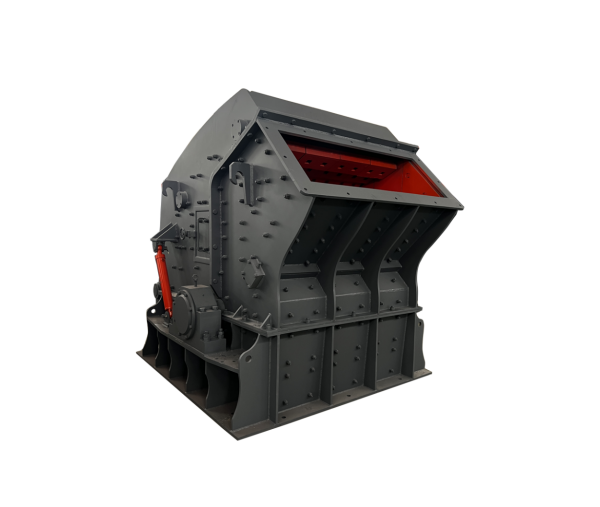

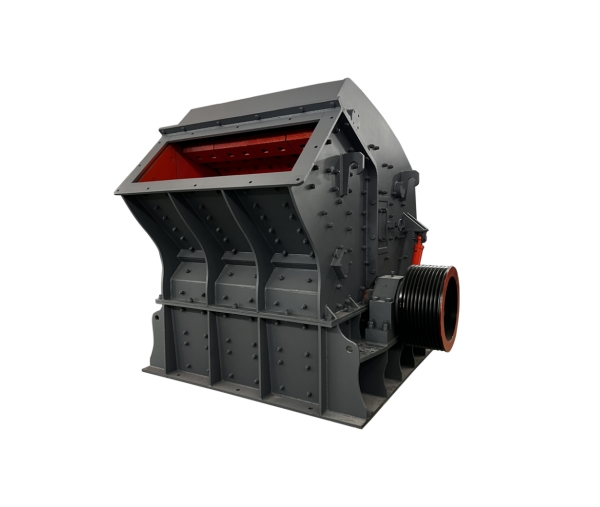

Impact Crusher

Impact crusher is a new generation of impact crusher based on the traditional impact crusher combined with the specific mining conditions of the sand and gravel industry. Compared with the traditional impact crusher, it greatly improves the crushing ratio and output while ensuring the advantages of the impact granulator. Widely used in building materials, ore crushing, railways, highways, energy, transportation, energy, cement, mining, chemical and other industries for medium and fine crushing materials. The size of the discharge particle can be adjusted, and the crushing specifications are diversified.

Product Features: Heavy duty rotor, bearing seat integration, internal multi-stage seal, dust and waterproof effect is good

Chat OnlineContact Us

Product Parameter

Model Specification Feeding Opening Size (mm) Max.Feeding Size (mm) Capacity(t/h) Power(kw) OverallDimension(mm)
PF Series Impact Crusher
PF1007 1000×700 400×730 300 35-50 55 2400×1558×2660
PF1010 1000×1050 400×1080 350 50-80 4-75 2455×2086×2800
PF1210 1250×1050 400×1080 350 60-120 6-110 2590×2050×2800
PF1214 1250×1400 400×1430 350 80-160 6-132 2590×2400×2810
PF1315 1300×1500 860×1520 350 120-260 6-200 2930×2760×3050
PF1515 1500×1500 1145×1520 500 220-280 280 2690×2049×2698
PF1320 1300×2000 860×3200 500 250-350 300 2900×3200×3250
PF1520 1520×2000 1245×2050 700 300-550 315-440 3581×3560×3865
NPH Series Impact Crusher
NPH1110 1100×1000 1020×820 500 110-260 160-200 2626×2106×1945
NPH1213 1200×1300 1320×880 550 145-350 200-250 2809×2529×2091
NPH1315 1300×1500 1540×930 600 200-450 250-315 2819×2535×2412
NPH1520 1500×2000 2040×995 400 335-760 400-500 3390×3520×2790
NPH1524 1500×2400 2516×767 400 410-960 560-630 3434×3955×2821
NPH1630 1600×2700 2740×787 400 540-1250 710-800 3693×4520×3173
NPH1313 1300×1300 1320×1225 800 280-520 200-250 2963×2560×2611
NPH1415 1400×1500 1540×1320 900 340-650 250-315 3325×2804×3068
NPH1620 1600×2000 2040×1630 1100 500-1050 400-500 3899×3692×3598
NPH2023 2000×2300 2310×1990 1300 1000-2100 1000-1260 4890×4330×4765
Note:The product pictures and models, data, functions, performance, specifications and other parameters on this website are for reference only.
