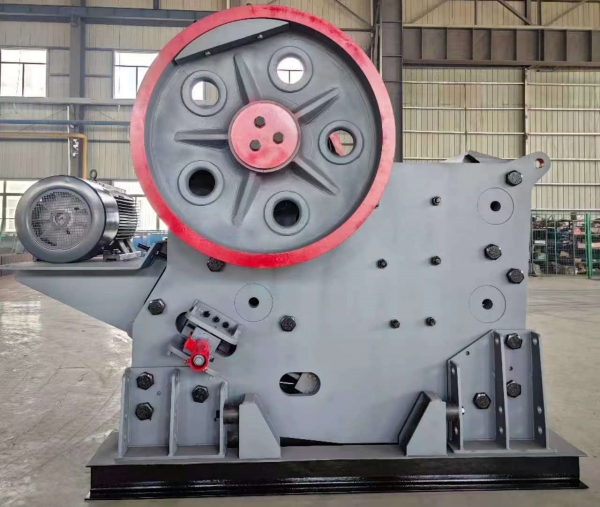

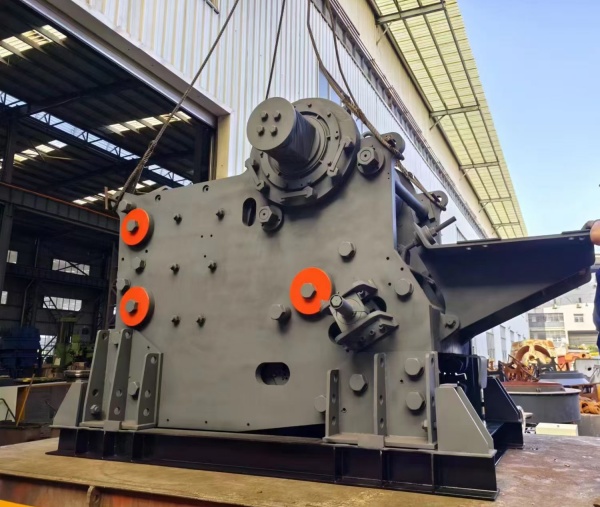

Jaw crusher, consists of two jaw plates, a movable jaw and a static jaw, forming a crushing cavity. It simulates the movement of two jaws of an animal to complete the material crushing operation. The jaw crusher adopts deep cavity crushing with no dead zone. The feeding and crushing efficiency is greatly improved. The single machine can save 15%-30% energy, and the system energy saving is more than doubled. It has the advantages of advanced technology, long service life, reliable operation, and easy maintenance.
| Model | Feeding Opening Size(mm) | Max.Feeding Size(mm) | Adjustment Range of Discharging Opening(mm) | Capacity(t/h) | Power(kw) | OverallDimension(mm) |
| C Series Jaw Crusher | ||||||
| C80 | 520×800 | 420 | 60-150 | 80-290 | 75 | 2650×1540×1780 |
| C100 | 760×1000 | 630 | 70-175 | 130-420 | 110 | 3700×2440×2520 |
| C110 | 850×1100 | 720 | 80-200 | 160-550 | 160 | 3800×2450×2550 |
| C125 | 1100×1250 | 800 | 100-250 | 230-760 | 160 | 4100×2750×2780 |
| C145 | 1200×1450 | 920 | 125-300 | 320-1040 | 200 | 4400×3060×3210 |
| C160 | 1200×1600 | 1020 | 150-300 | 410-1150 | 250 | 5700×3650×3550 |
| C180 | 1200×1800 | 1020 | 150-300 | 490-1280 | 315/355 | 5700×4150×3550 |
| C200 | 1500×2000 | 1200 | 175-300 | 610-1510 | 400 | 6500×3990×4260 |
| PE Series Jaw Crusher | ||||||
| PE250x400 | 400x250 | 210 | 20-80 | 5-20 | 15 | 1450x1315x1296 |
| PE400x600 | 600x400 | 350 | 40-100 | 15-65 | 30 | 1700x1732x1653 |
| PE500x750 | 750x500 | 425 | 50-100 | 45-110 | 55 | 2035x1912x2000 |
| PE600x900 | 900x600 | 500 | 65-140 | 90-180 | 55-75 | 2290x2206x2370 |
| PE750x1060 | 1060x750 | 630 | 80-160 | 110-320 | 110 | 2655x2302x3110 |
| PE900x1200 | 1200x900 | 750 | 100-200 | 200-400 | 132 | 3380x2870x3330 |
| PE1000x1200 | 1200x1000 | 850 | 195-265 | 280-500 | 132 | 3889×2826×3025 |
| PE1200x1500 | 1500x1200 | 1020 | 150-300 | 400-800 | 180-220 | 4200x3750x3820 |
| PEX Series Jaw Crusher | ||||||
| PEX150x250 | 250x150 | 125 | 10-40 | 1-5 | 5.5 | 875x758x850 |
| PEX150x750 | 750×150 | 125 | 18-18 | 5-16 | 15 | 1200x1500x1200 |
| PEX250x750 | 750x250 | 210 | 25-60 | 13-35 | 22 | 1380x1750x1540 |
| PEX250x1000 | 1000×250 | 210 | 25-60 | 16-50 | 30-37 | 1530x1992x1380 |
| PEX250x1200 | 1200×250 | 210 | 25-60 | 20-60 | 37 | 1900x2192x1430 |
| PEX300x1300 | 1300×250 | 250 | 25-105 | 20-90 | 55-75 | 2720x1950x1600 |
Being a prominent player in the new resource development industry, the customer specializes in various aspects such as mineral resource exploration, quarrying, processing, and sales of construction stones.
This customer collaborated with Hao He to construct a granite and tuff crushing plant with a capacity of 150-200t/h.
This customer collaborated with Hao He to construct a granite and tuff crushing plant with a capacity of 70-130t/h.
