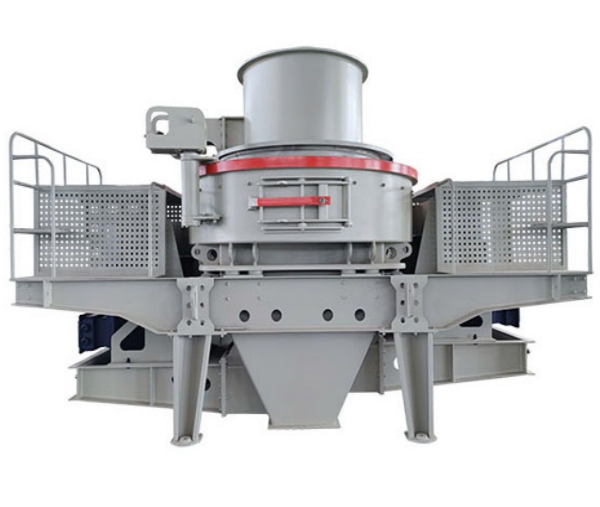

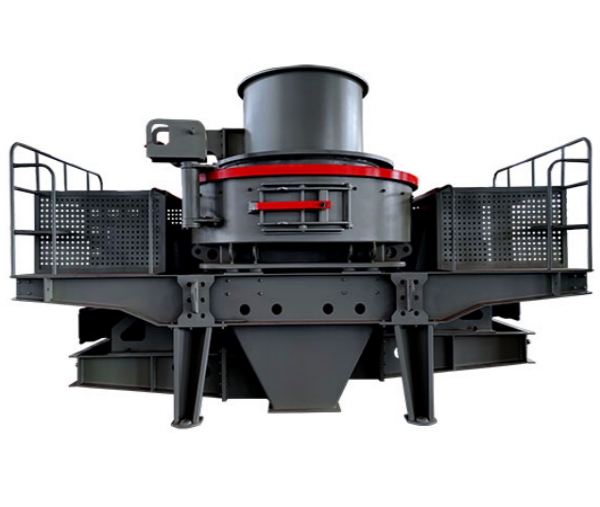

Impact sand Maker is suitable for crushing and shaping of soft or medium hard and extremely hard materials, widely used in a variety of ores, cement, refractory materials, aluminum soil clinker, emery, glass raw materials, construction sand, stone and all kinds of metallurgical slag, especially for silicon carbide, emery, sintered bauxite, sand and other high hard, extra hard and abrasion-resistant materials than other types of crusher output effect is higher. In the field of engineering, the Impact sand Maker is the ideal production equipment for machine-made sand, bedding, asphalt concrete and cement concrete aggregate.
| Model | Soft material | Hard material | Sanding Making | Reshaping | Speed (r/min) | Power(kw) | OverallDimension(mm) |
| Max.Feeding Size(mm) | Feeding throughput (t/h) | ||||||
| VSI7615 | 35 | 30 | 70-140 | 150-280 | 1700-1900 | 75×2 | 4100×2330×2300 |
| VSI8522 | 40 | 35 | 120-190 | 240-380 | 1500-1700 | 110×2 | 4140×2500×2700 |
| VSI9532 | 45 | 40 | 180-280 | 350-540 | 1300-1510 | 160×2 | 4560×2600×2900 |
| VSI1145 | 50 | 45 | 250-360 | 500-640 | 1100-1310 | 220×2 | 5000×2790×3320 |
| VSI9026 | ≤40 | ≤50 | 167-179 | 200-313 | 1200-1500 | 132×2 | 4200×2400×3150 |
| VSI1040 | ≤45 | ≤55 | 264-283 | 317-495 | 1100-1400 | 200×2 | 4880×2560×3725 |
| VSI1150 | ≤50 | ≤60 | 344-368 | 413-644 | 1000-1300 | 250×2 | 5500×2750×3950 |
| VSI1263 | ≤50 | ≤60 | 454-486 | 545-849 | 900-1200 | 315×2 | 5700×2980×4190 |
| VSI1380 | ≤50 | ≤60 | 601-643 | 721-1125 | 800-1100 | 400×2 | 7900×3260×4183 |
| VSI13100 | ≤50 | ≤60 | 738-839 | 940-1407 | 800-1100 | 500×2 | 7900×3260×4183 |
