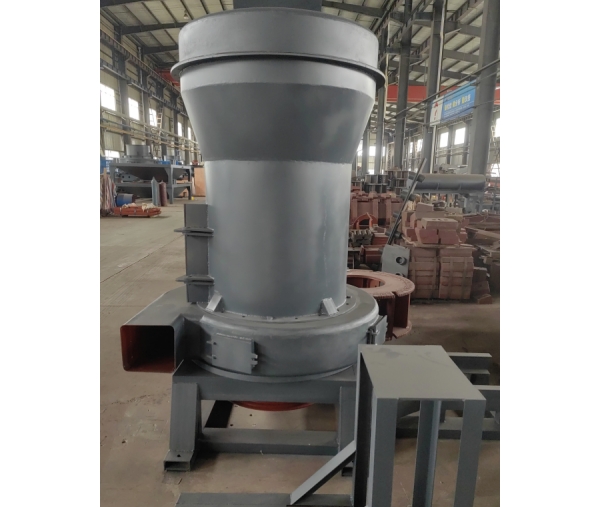

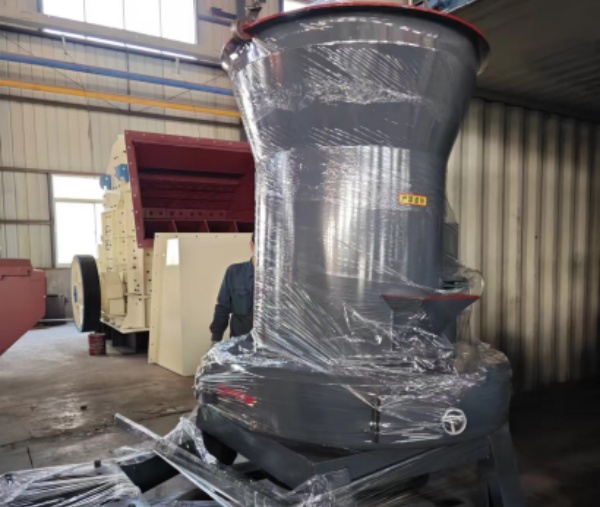

Milling machine is widely used in metallurgy, building materials, chemical industry, mining and other fields of mineral products grinding processing. According to the fineness of the grinding material and the fineness of the discharge material, the grinding machine can be divided into six types of grinding machines: pendulum grinding machine, high pressure hanging roll grinding machine, high pressure micro grinding machine, straight through centrifugal grinding machine, overpressure trapezoidal grinding machine, and three-ring medium speed grinding machine.
| YGM Series Milling Machine | |||||||||||
| Model | Grinding roll | Grinding ring | Feeding Size(mm) | Power(kw) | Finished particle size(mm) | Different fineness corresponds to production capacity(t/h) | |||||
| Number | Diameter(mm) | Height(mm) | Inner diameter(mm) | Height(mm) | 0.125(mm) | 0.075(mm) | 0.044(mm) | ||||
| YGM7815 | 3 | 260 | 150 | 780 | 150 | ≤15 | 18.5 | 0.613-0.033 | 1.5-3.0 | 1.1-2.2 | 0.8-1.4 |
| YGM8514 | 3 | 270 | 140 | 850 | 140 | ≤20 | 22 | 0.613-0.033 | 1.8-5.0 | 1.3-2.8 | 1.0-2.0 |
| YGM9518 | 4 | 310 | 180 | 950 | 180 | ≤25 | 37 | 0.613-0.033 | 2.0-8.2 | 1.8-3.6 | 1.3-3.0 |
| YGM4121 | 5 | 410 | 210 | 1280 | 210 | ≤30 | 75 | 0.95-0.044 | 2.3-13.6 | 2.0-4.5 | 1.8-4.0 |
| YGM4528 | 6 | 450 | 280 | 1600 | 280 | ≤35 | 132 | 1.6-0.045 | 4.9-13.7 | 1.1-2.2 | 2.0-8.0 |
| SCM Series Milling Machine | ||||||||
| Model | Number of ring rolls | Diameter(mm) | Number of grinding rings and raceways | speed of the main engine (r/min) | Feeding Size(mm) | Finished particle size(mesh) | Capacity(kg/h) | OverallDimension（mm） |
| SCM8021 | 21 | 800 | 1x3 | 230-400 | ≤10 | 325-2500 | 500-4500 | 13x3x5.8 |
| SCM9024 | 24 | 900 | 2x4 | 200-220 | ≤20 | 325-2500 | 800-6500 | 14.7x4.8x8.6 |
| SCM1036 | 36 | 1000 | 2x4 | 180-200 | ≤20 | 400-7500 | 1000-8500 | 18x4.6x8.6 |
| SCM1250 | 44 | 1300 | 2x4 | 135-155 | ≤20 | 325-2500 | 2500-14000 | 14x9x10.25 |
