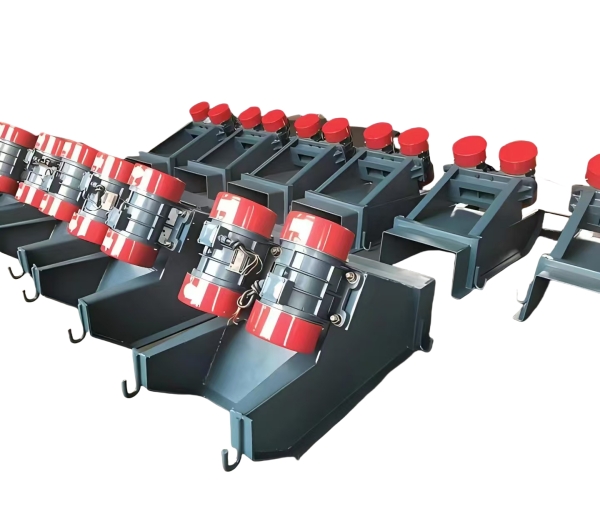

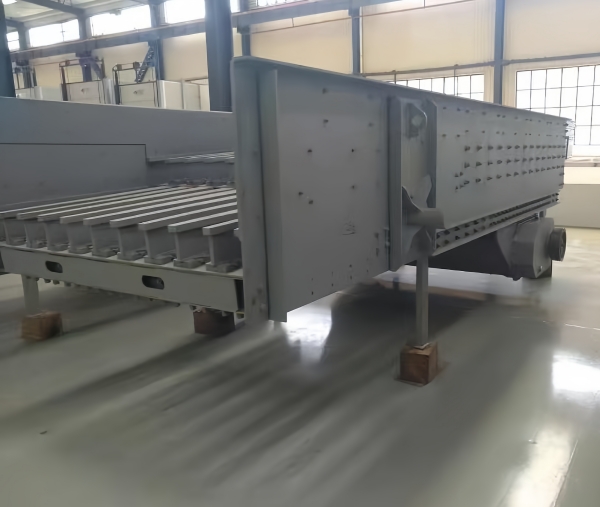

The vibrating feeder can evenly, regularly and continuously feed the bulk and granular materials from the storage bin to the receiving device, and can be continuously and evenly fed for the crushing machinery in the sand and stone production line, and coarser the materials. In the sand and stone production line can be continuously and evenly fed for the crushing machinery, and the material is coarse screening, widely used in metallurgy, coal mine, mineral processing, building materials, chemical, abrasive and other industries crushing, screening combined equipment.
| FG Series Vibrating Feeder | ||||||||||
| Model | Tank specification(mm) | Bar specification(mm) | Installation angle(°) | Double-amplitude(mm) | Eccentric shaft speed(r/min) | Max feed size(mm) | Max throughput(t/h) | Power(kw) | Normal selection processing capacity(t/h) | Bar opening setting(mm) |
| FG1045 | 1000×4500 | 1×1200 | 5(0-10) | 8.5 |
1000 (500-1000) |
700 | 400 | 15 | ≤320 |
80/100/125/150/175 (default: 80mm) |
| FG1345 | 1300×4500 | 1×1200 | 900 | 600 | 22 | ≤550 |
80/100/120/150/175/200 (default: 120mm) |
|||
| FG1360 | 1300×6000 | 2×1200 | 900 | 600 | 30 | ≤550 | ||||
| FG1660 | 1600×6000 | 2×1200 | 1200 | 1000 | 30 | ≤850 | ||||
| FG2060 | 2000×6000 | 2×1200 | 1500 | 1600 | 45 | ≤1350 |
150/175/200/225 (default: 150mm) |
|||
| FG1354G | 1300×5000 | 4×900 |
5(0-10) Max:13 |
8 | 900 | 500 | 22 | ≤550 |
80/100/125/150/175 (default: 80mm) |
|
| FG1654G | 1600×5000 | 4×900 |
5(0-10) Max:13 |
8 | 900 | 850 | 30 | ≤850 |
80/100/120/150/175/200 (default: 120mm) |
|
| FG2054G | 2000×5000 |
5(0-10) Max:13 |
8 | 900 | 1200 | 45 | ≤1300 |
80/100/120/150/175/200 (default: 120mm) |
||
| FG Series Vibrating Feeder(shock excitation electric engine) | |||||||||
| Model | Tank size(mm) | Max feed size(mm) | Max capacity(t/h) | Double-amplitude(mm) | Installation angle(°) | Bar length(mm) | Bar opening(mm) | Power(kw) | OverallDimension(mm) |
| FG0936 | 900×3600 | 500 | 280 | 5-8 | 0 | 2×700 |
default:65 Blind plate type without bar |
2.9×2 | 3600×1520×1481 |
| FG0942 | 900×4200 | 500 | 280 | 5-8 | 0 | 2×700 | 2.9×2 | 4200×1520×1481 | |
| FG1245 | 1200×4500 | 700 | 450 | 5-8 | 0 | 2×900 |
80-200 (default:80) Blind plate type without bar |
6×2 | 4500×1840×1555 |
| FP Series Vibrating Feeder | |||||||
| Model | Tank specification(mm) | Max feed size(mm) | Double-amplitude(mm) | Vibrational frequency(rpm) | Power(kw) | Max capacity(t/h) | |
| 0° | 10° | ||||||
| FPZ0816 | 800×1600×250 | 265 | 3-4 | 2×1.1 | 180 | 220 | |
| FPZ1220 | 1200×2000×300 | 400 | 3-4 | 2×1.5 | 400 | 500 | |
| FPZ1623 | 1600×2250×300 | 500 | 3-4 | 970 | 2×2.5 | 700 | 850 |
| ZSW Series Vibrating Feeder | |||||||
| Model | Slot size(mm) | Rotate speed(r/min) | Max feed size(mm) | Capacity(t/h) | Power(kw) | OverallDimension(mm) | |
| ZSW180x80 | 1800×800 | 970 | 300 | 30-80 | 2x1.5 | 2200×1100×800 | |
| ZSW200x120 | 2000×1200 | 970 | 300 | 80-500 | 2x2.2 | 2000×1200×855 | |
| ZSW300x90 | 3000×900 | 970 | 300 | 40-100 | 2x2.2 | 3050×1430×1550 | |
| GZG Series Vibrating Feeder | |||||||
| Model | Feed size(mm) | capacity(t/h) | Power(kw) | Frequency of vibration(hz) | Double-amplitude(mm) | exciting force(kn) | |
| GZG-25 | 60 | 25 | 0.25x2 | 25 | 2-3 | 2.5x2 | |
| GZG-30 | 80 | 30 | 0.4x2 | 25 | 2-3 | ||
| GZG-50 | 90 | 50 | 0.4x2 | 25 | 2-3 | ||
| GZG-60 | 90 | 60 | 0.4x2 | 25 | 2-4 | ||
| GZG-80 | 100 | 80 | 0.75x2 | 25 | 2-4 | ||
| GZG-100 | 150 | 100 | 0.75x2 | 25 | 2-5 | ||
| GZG-200 | 180 | 200 | 1.5x2 | 25 | 2-5 | ||
| GZG-250 | 200 | 250 | 1.5x2 | 25 | 2-5 | ||
| GZG-300 | 200 | 300 | 1.5x2 | 25 | 2-5 | ||
| GZG-400 | 250 | 400 | 2x2 | 25 | 2-5 | ||
| GZG-500 | 300 | 500 | 2x2 | 25 | 2-5 | ||
| GZG-750 | 350 | 750 | 2.5x2 | 25 | 3-5 | ||
| GZG-1000 | 400 | 1000 | 3.75x2 | 25 | 4-6 | ||
