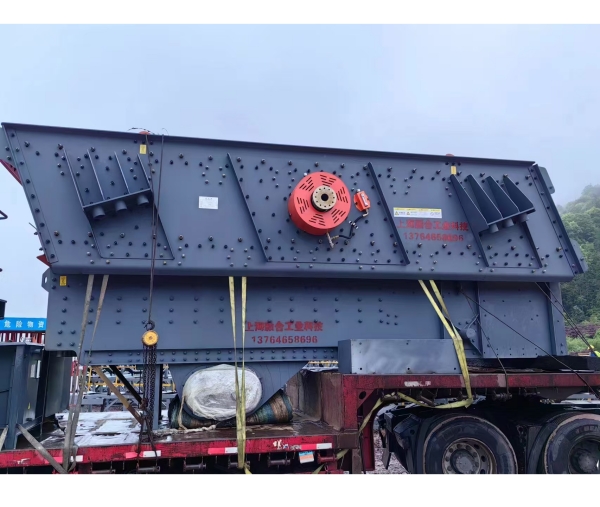

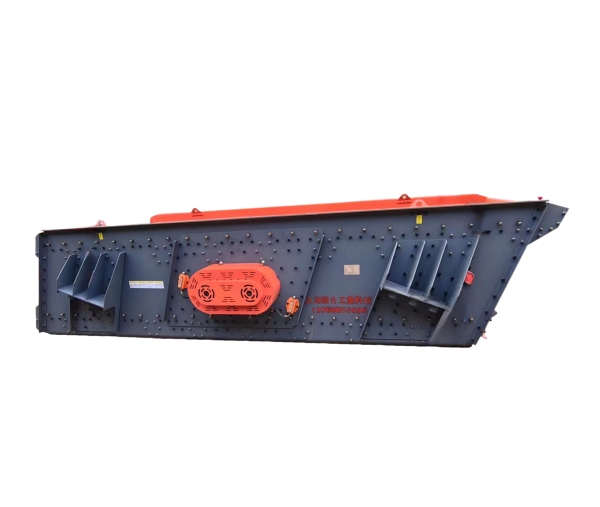

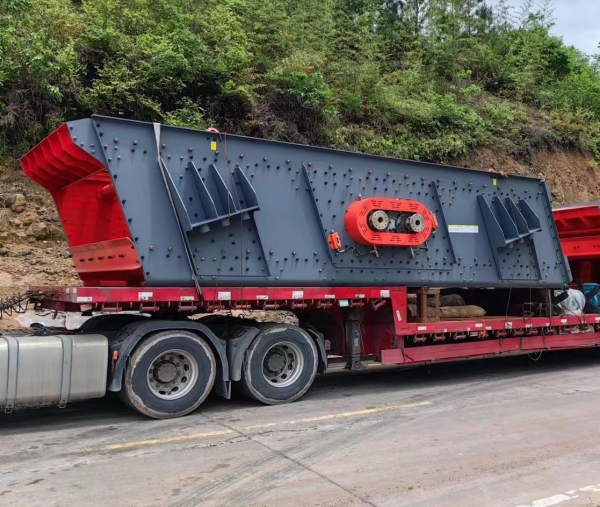

Vibrating screen is the use of oscillators excited by the oscillating type vibration and work. The upper rotating weight of the vibrator causes the screen surface to produce plane cyclotron vibration, while the lower rotating weight causes the screen surface to produce conical gyrotron vibration, and the combined effect causes the screen surface to produce complex rotational vibration. Its vibration trajectory is a complex space curve. The curve is projected as a circle on the horizontal plane and as an ellipse on the vertical plane. The amplitude can be changed by adjusting the exciting force of the upper and lower rotating weights.
| YK Series Vibrating Screen | ||||||||
| Model | Deck dimension(mm) | Leaning angle of screen(°) | Top deck max.opening(mm) | Maximum feed size(mm) | Speed(r/min) | Double amplitude(mm) | Capacity(t/h) | Power(kw) |
| 2YK1545 | 1500×4500 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 45-380 | 11 |
| 3YK1545 | 1500×4500 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 45-380 | 15 |
| 2YK1845 | 1800×4500 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 60-450 | 15 |
| 3YK1845 | 1800×4500 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 60-450 | 22 |
| 2YK1860 | 1800×6000 | 18(18-25) | 2-70 | 200 | 800-900 | 7-10 | 75-600 | 15 |
| 3YK1860 | 1800×6000 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 75-600 | 30 |
| 4YK1860 | 1800×6000 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 75-600 | 37 |
| 2YK2160 | 2100×6000 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 85-700 | 22 |
| 3YK2160 | 2100×6000 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 85-700 | 30 |
| 4YK2160 | 2100×6000 | 18(18-25) | 2-70 | 200 | 800-900 | 7-11 | 85-700 | 37 |
| 2YK2460 | 2400×6000 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 100-800 | 22 |
| 3YK2460 | 2400×6000 | 18(18-25) | 2-70 | 200 | 800-900 | 7-11 | 100-800 | 30 |
| 4YK2460 | 2400×6000 | 18(18-25) | 2-70 | 200 | 800-900 | 7-10 | 100-800 | 37 |
| 2YK2760 | 2700×6000 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 120-900 | 30 |
| 3YK2760 | 2700×6000 | 18(18-25) | 2-70 | 200 | 800-900 | 7-11 | 120-900 | 37 |
| 2YK3072 | 3000×7200 | 20(20-25) | 2-90 | 250 | 800-900 | 7-11 | 150-1200 | 37 |
| 2YK3075 | 3000×7500 | 20(20-25) | 2-150 | 270 | 800-900 | 7-12 | 200-1850 | 22x2 |
| 3YK3075 | 3000×7500 | 20(20-25) | 2-150 | 270 | 800-900 | 7-12 | 200-1850 | 30x2 |
| 2YK3680 | 3600×7500 | 20(20-25) | 2-150 | 300 | 800-900 | 7-12 | 225-2250 | 30x2 |
| 3YK3680 | 3600×7500 | 20(20-25) | 2-150 | 300 | 800-900 | 7-12 | 225-2250 | 37x2 |
